DO IT IN COMPOSITE

YACHTING – SHIPBUILDING

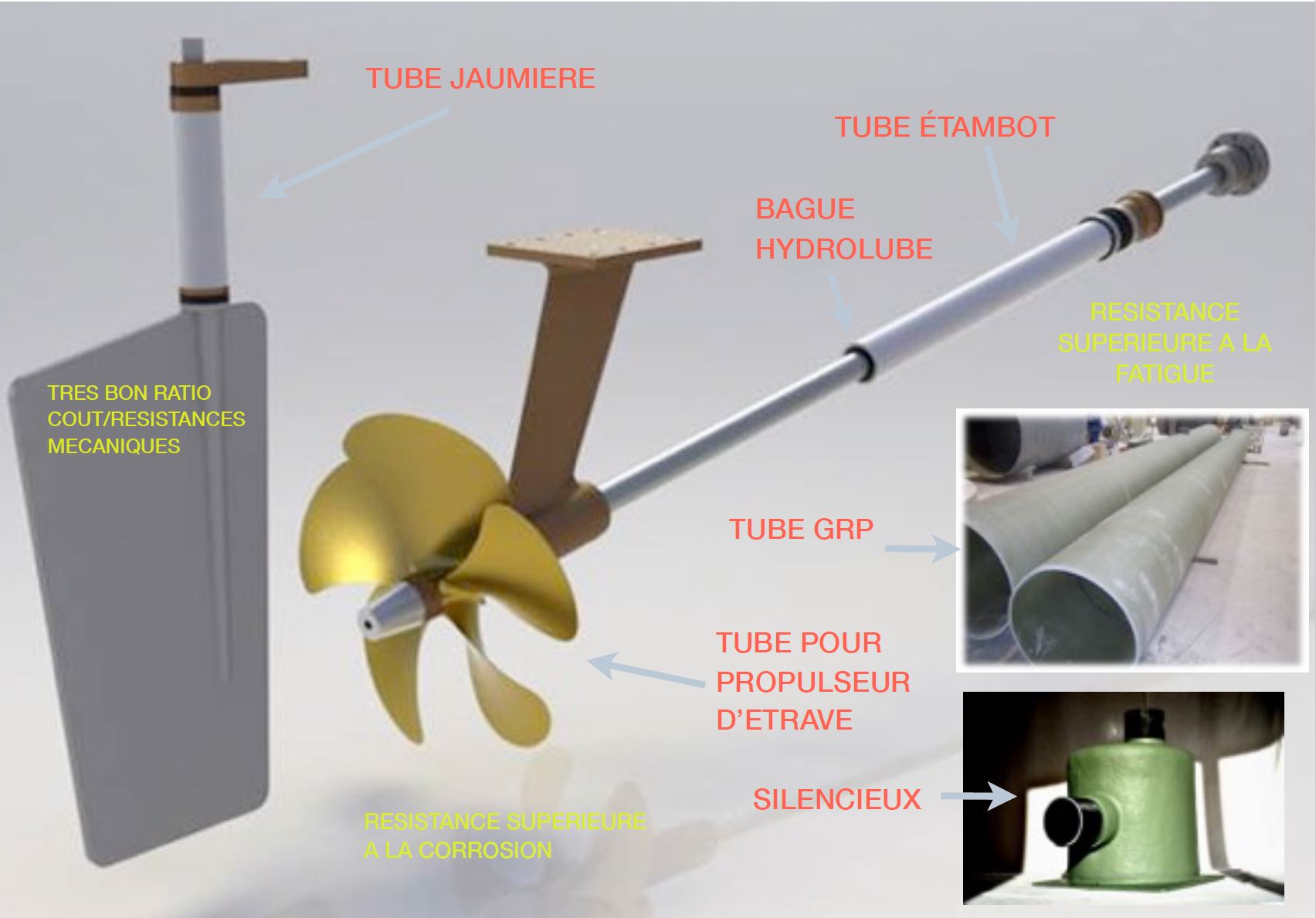

Stern tube / Rudder post / Propeller / Beam

Anti-corrosion / Hydrostatic pressure resistance / Absence of styrene

The composite material use for marine applications is a long-standing tradition.

Pleasure boats have been composite-made for more than 40 years. A combination of laws, worldwide competition and technical evolutions has encouraged shipyards to use techniques such as the infusion process, the vacuum forming process, and even the autoclave machine. In the revolution parts sector, such as stern tubes, rudder posts, propellers, connecting beams, the filament winding technique has made it possible to produce cheaper and more robust composite parts.

The experience gained in the fields of the composite parts and structural bonding completion has enabled us to deliver parts whose geometry is ever more complex.



“The European legislation is now encouraging shipyards to reduce their styrene emissions (a monomer used to cross-link polyester resins). The parts, whose crosslinking is initiated by heat in a sterilizer, thanks to expoxide resins, are structurally better, more economical, and they don’t emit any steam.”

Jean-Yves Olivré (production manager).

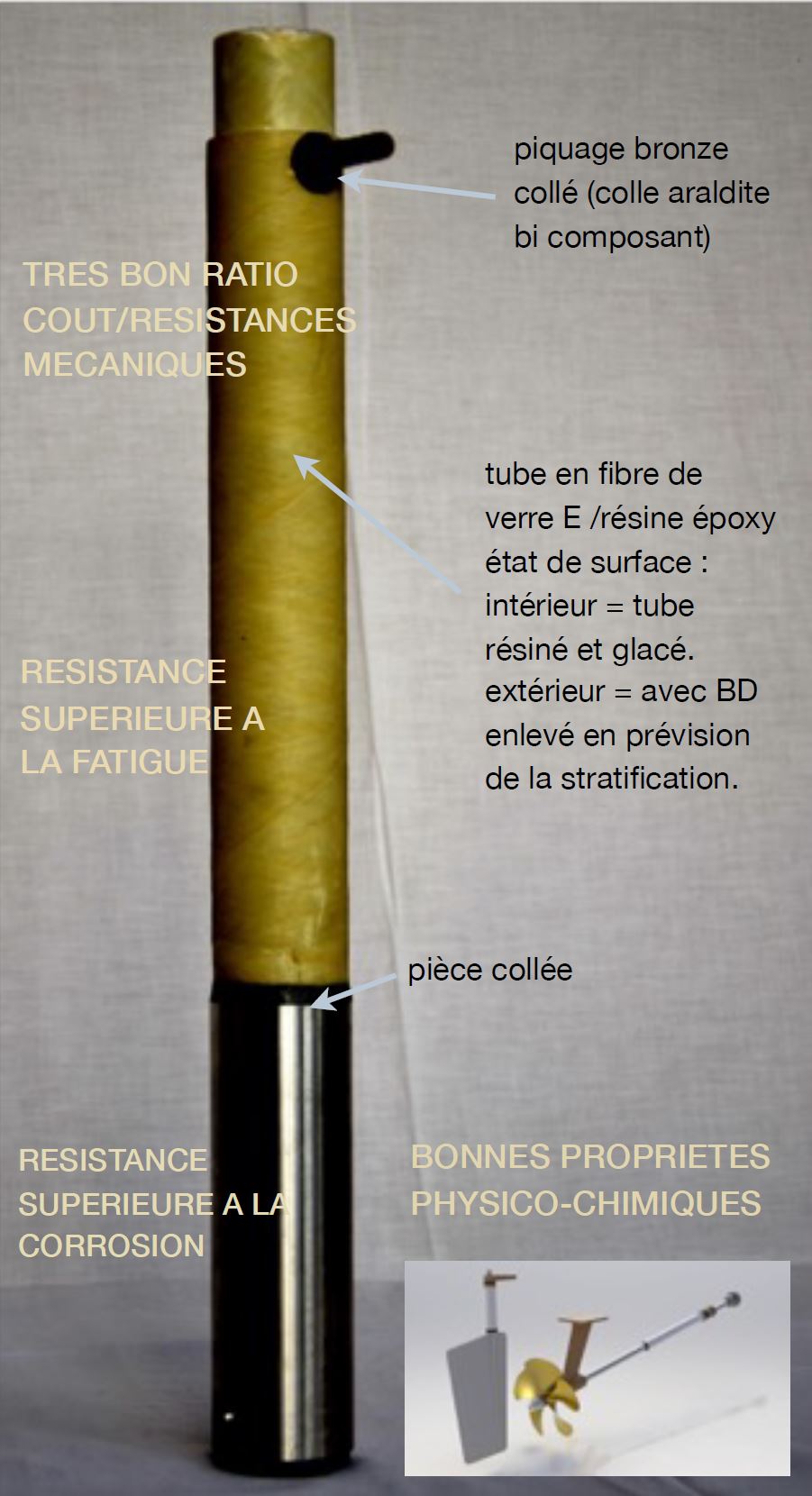

STERN TUBE

E-Glass Fiber /
Carbon Fiber
epoxy resin
Heat Resistance = 130°C
Diameter tolerances
external : +/- 0.8 mm
internal : +/- 0.1 mm
effective length = 3 m

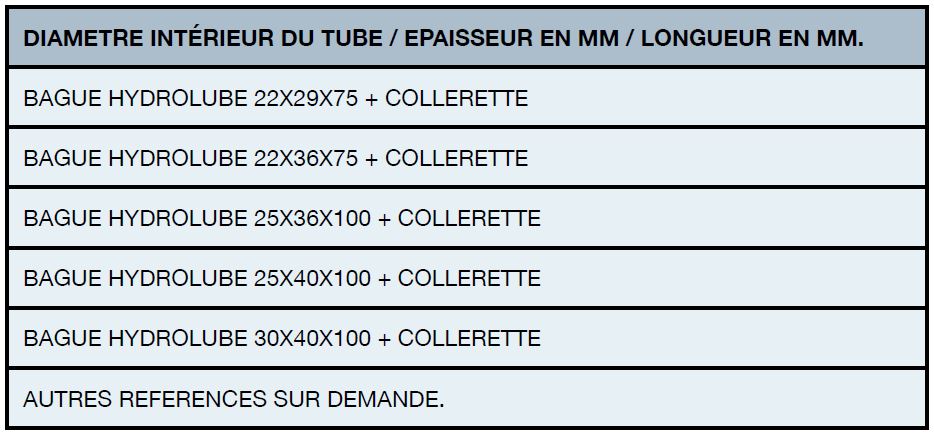

CUTLASS BEARINGS

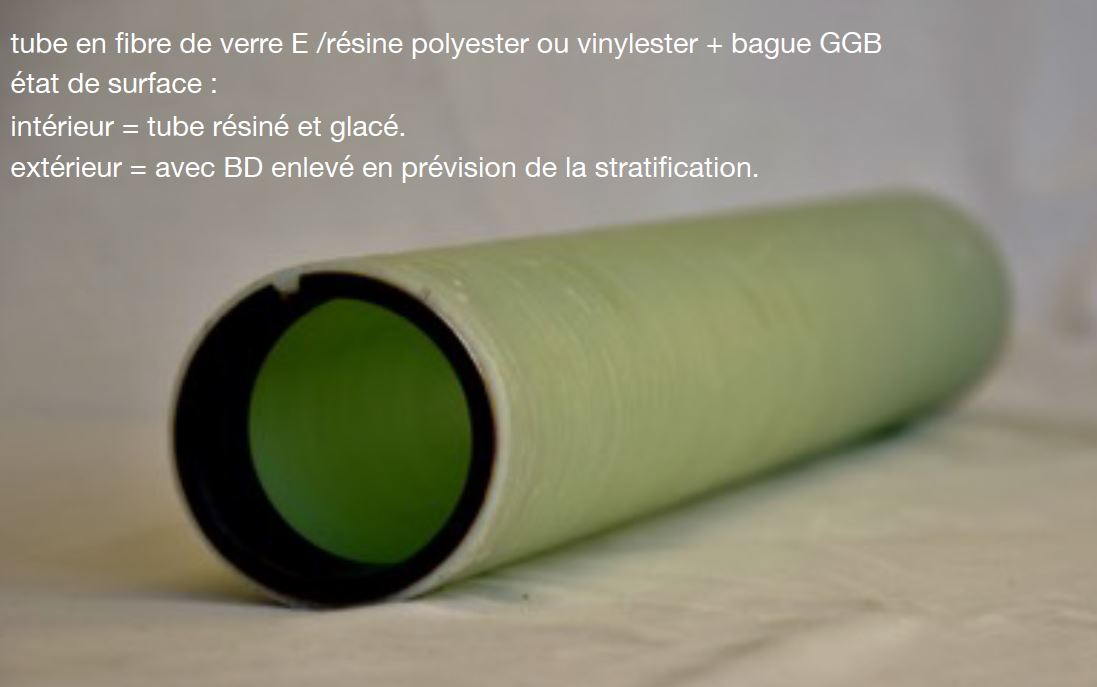

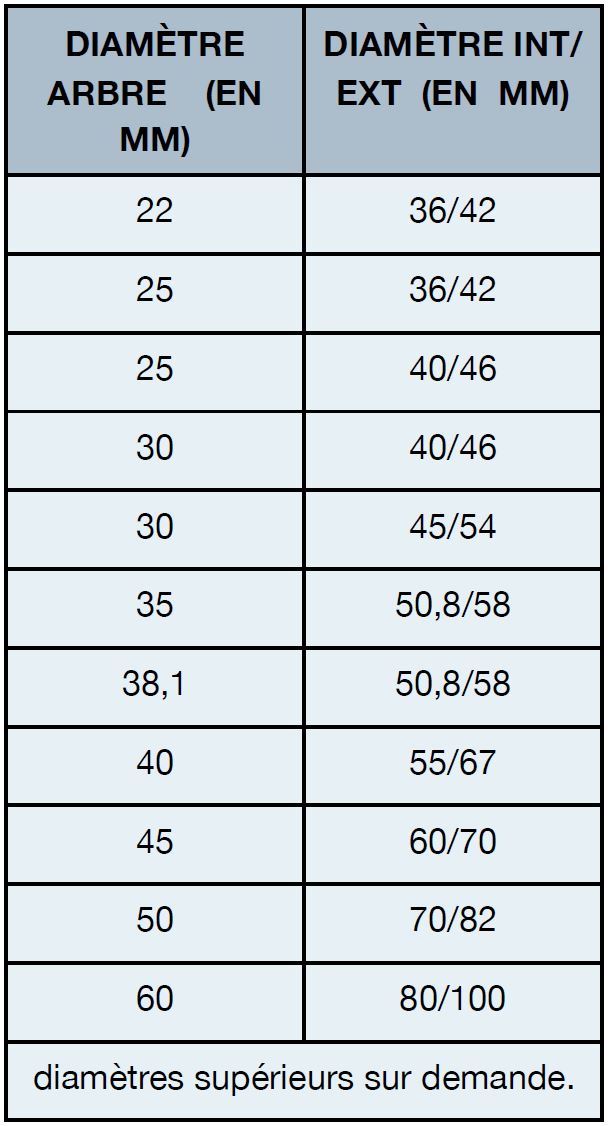

RUDDER TUBE

E-Glass Fiber /
Carbon Fiber
polysester resin /
vinylester
Maximum Heat Resistance = 130°C
Diameter tolerance
external : +/- 1 mm
internal : +/- 0,2 mm
Finishing :
Natural/Tear Strip/ unremoved Tear Strip.

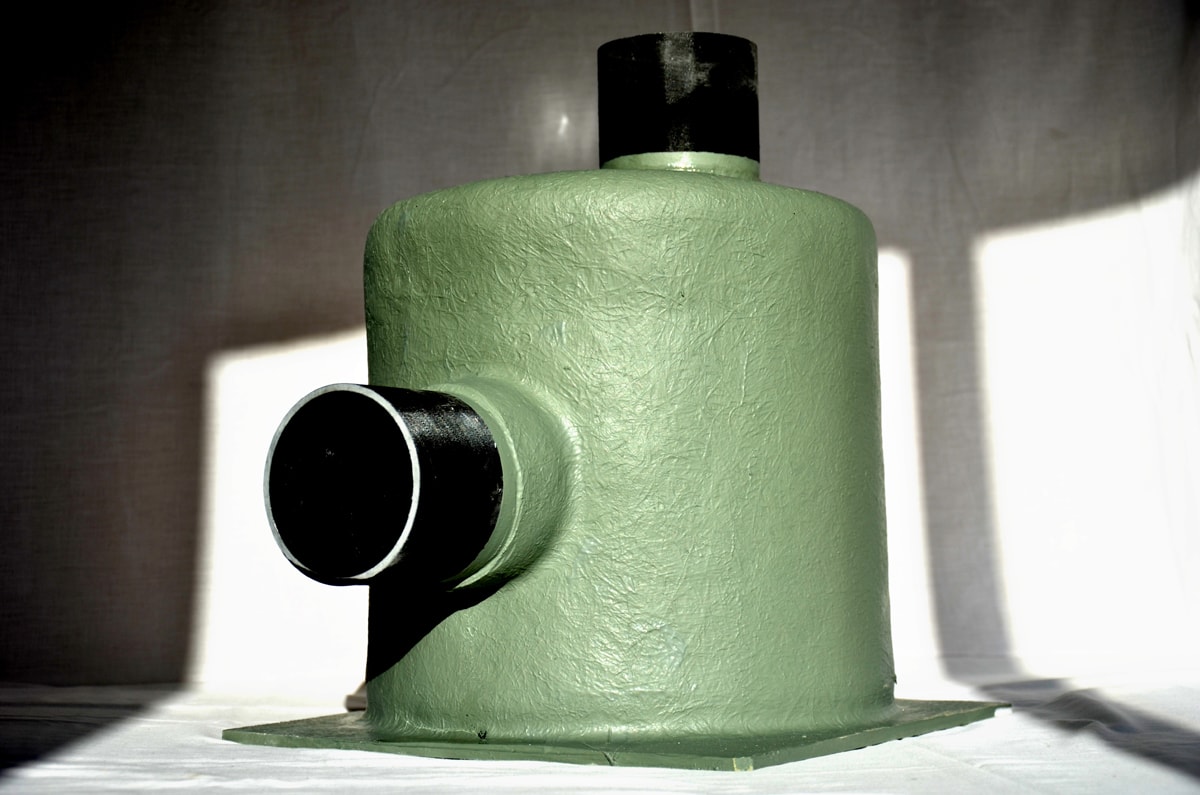

WATER EXHAUST PIPE / MUFFLER

E-Glass Fiber / polyester resin (made thanks to the spray lay-up process).

Available diameters: 300 MM / 400 MM / 450 MM (several possible outlets, development available on demand)

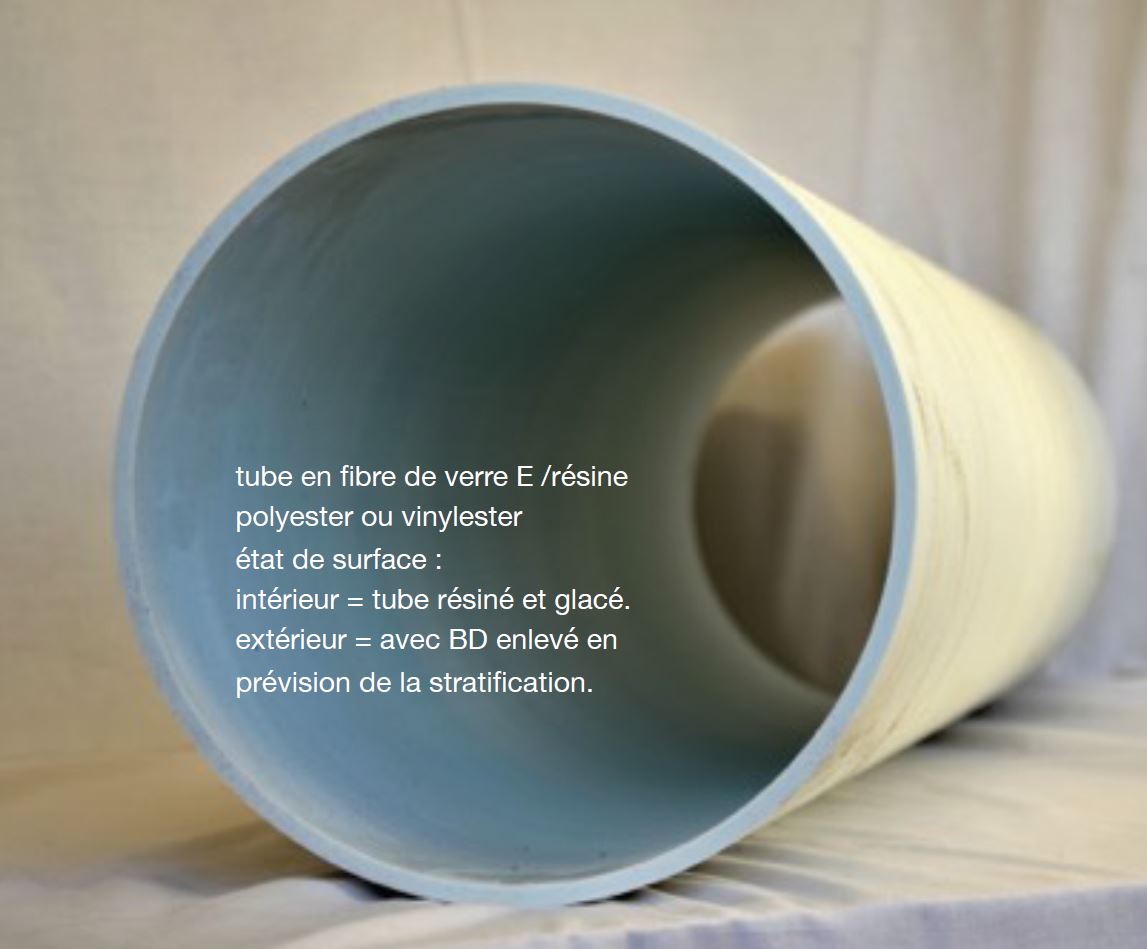

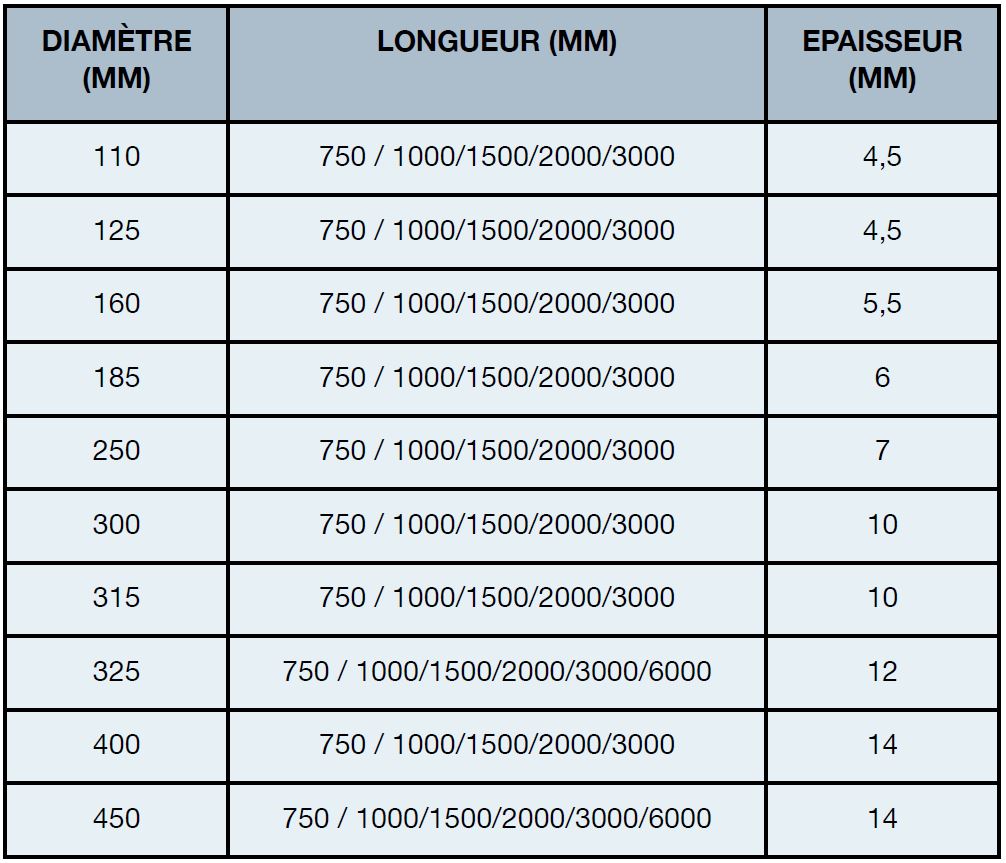

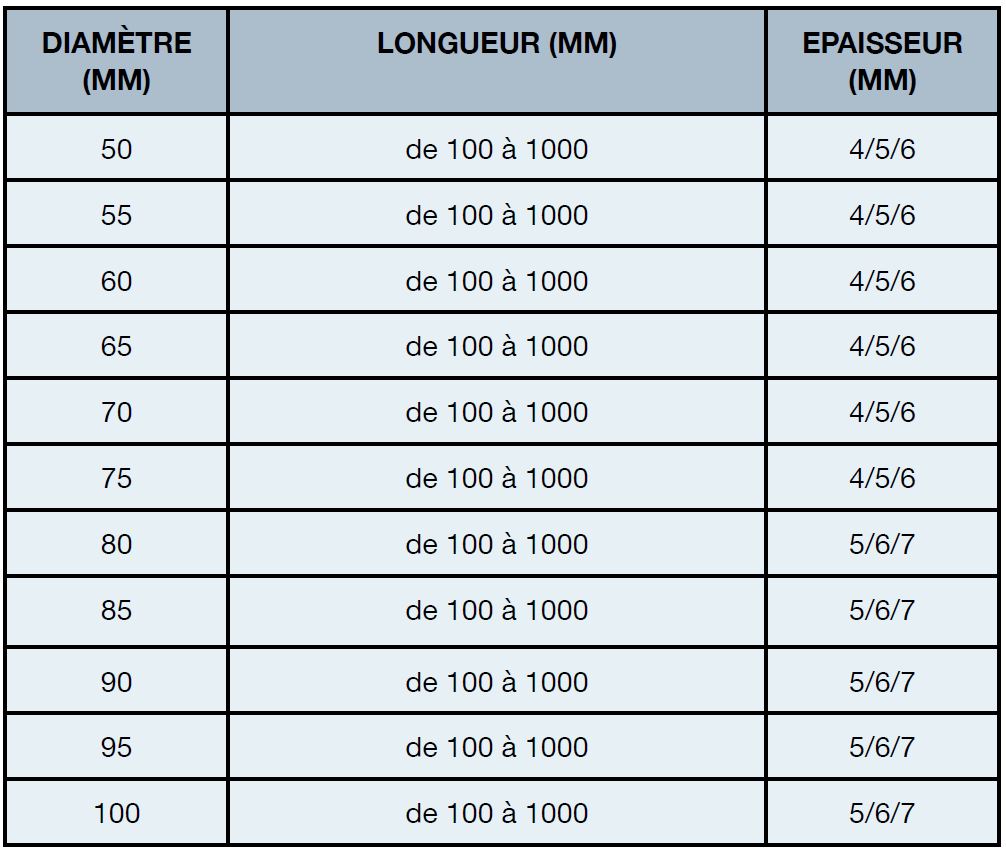

GRP TUBE FOR BOW THRUSTER

E-Glass Fiber /
Carbon Fiber
polysester resin /
vinylester
Maximum Heat Resistance = 130°C
Diameter tolerances :
external : +/- 1 mm
internal : +/- 0,2 mm
Finishing :
Natural/Tear Strip/ unremoved Tear Strip
Anti-corrosion layer = 1 mm

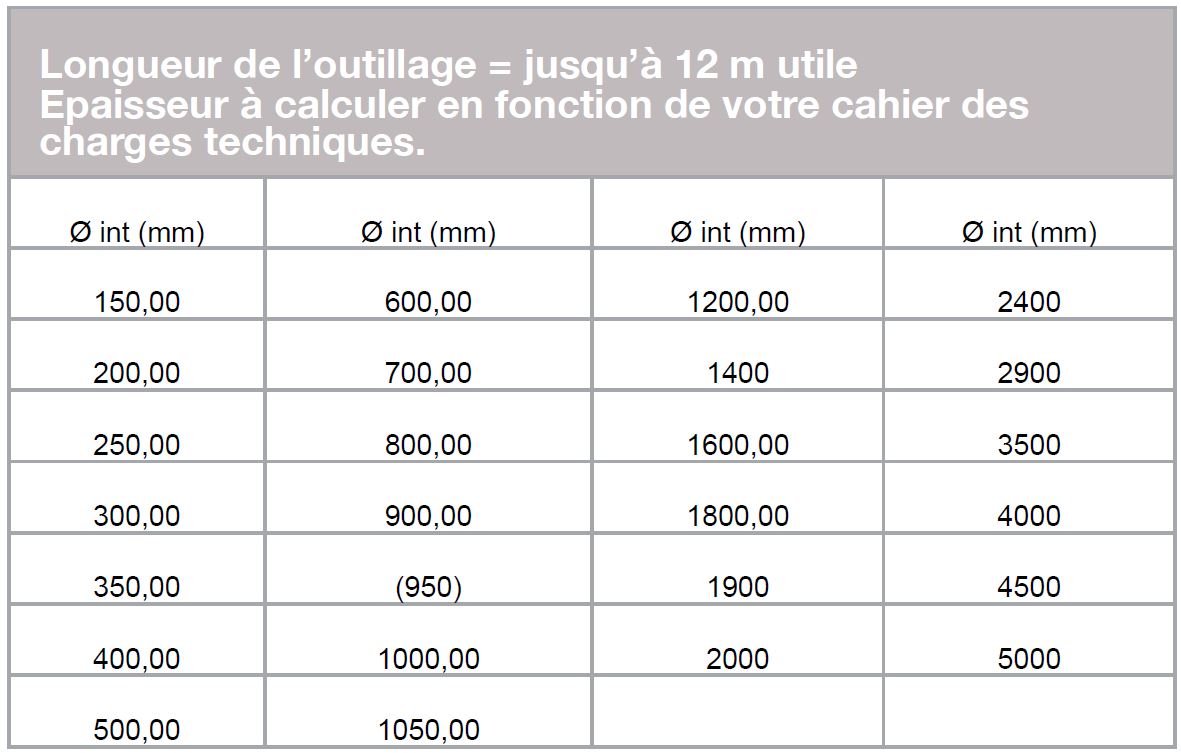

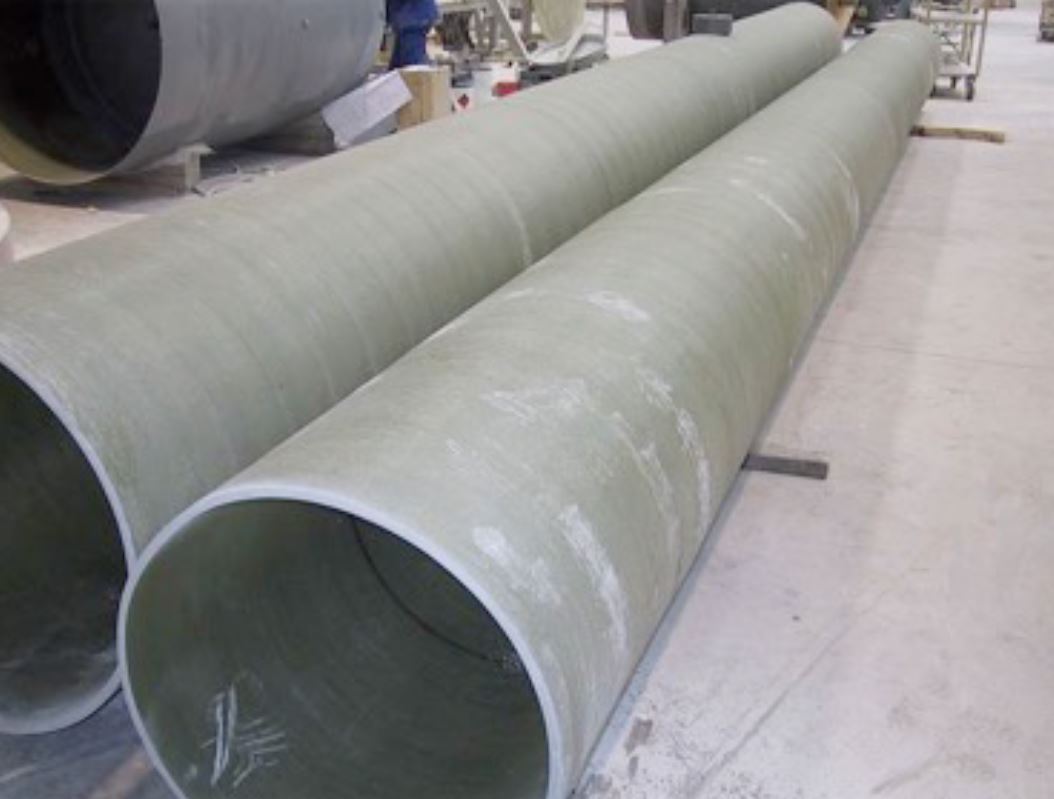

GRP STRUCTURAL TUBE

E-Glass Fiber / Carbon Fiber
polyester isophtalic resin / vinylester
Maximum Heat Resistance = 130°C
Finishing  :
Natural/Tear Strip/ unremoved Tear Strip.

  • Connecting beams
  • Elements for framework /
  • Construction and public works
  • GRP tours
  • GRP radome
  • Feedthroughs
  • Specific conduits
  • Piping / Ducts
